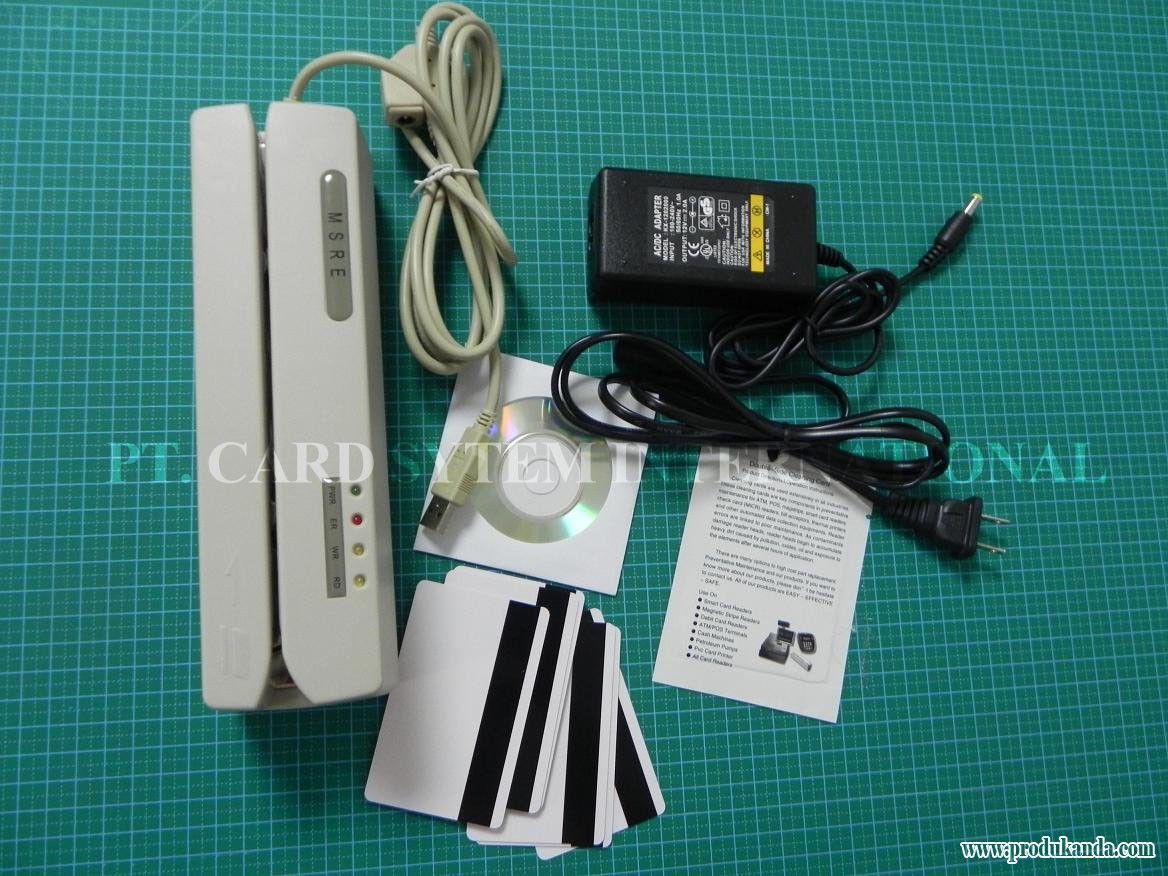

Alat ini dapat membaca dan menulis dengan sempurna data binary pada kartu magnetik (Hi/Loco) ISO/IEC7810/11/12/13 baik pada track 1, track 2 dan track 3 dengan sempurna.
Alat ini bisa menerima masukan dari flat file txt sehingga mempermudah proses writing. Tersedia model dengan interface connection USB maupun serial. FREE demo kit software.
Specification:
• Operating voltage : 12v - 24VDC
• Consumption : Typical 350mA Max. and 600mA plus for each writing track
• Consumption : Typical 350mA Max. and 600mA plus for each writing track
• Communication : USB
• Ripple : 50mVp-p or less
• Dielectric strength : 500VDC for 1 minute
• Swipe : Manual, single direction
• Read card : Track 1/2/3
• Bit density : 210 bpi 75/210 bpi 210 bpi
• Coercive : Read/Write 300-4000 Oe Magcard
• Card thickness : 0.76-1.2mm
• Swipe speed 20 – 100 mm / sec
• Read, Write and erase • Swipe speed 20 – 100 mm / sec
• Recording Density :
-Track 1 210 BPI (max 76 characters)
-Track 2 75 BPI (max 36 / 104 characters)
-Track 3 210 BPI (max 104 characters)
• Magnetic head life more than 600.000 times
• Power Supply DC 12v by external adaptor
• Dimensions L 213 x W 64 x H 65 mm
Informasi detil silahkan menghubungi hp/wa/telegram 0811-8163-494
